Box Packing Facial Paper Tissue Machine Product Line

FOB Reference Price:Get Latest Price
$20,000.00 - $75,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
ZODE-2300
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Slitting Rewinder
Computerized:
Yes
Place of Origin:
Guangxi, China
Brand Name:
ZODE
Voltage:
220V/380V 50Hz
Power(W):
5.5KW
Dimension(L*W*H):
3513*3023*1650mm
Weight:
2500KG-7500KG
Certification:
CE ISO
Function:
facial tissue paper folding making machine
Technology:
Full servo technology
Automatic type:
Fully automatic
Packing film:
carton box
Output:
85pcs/min
Air supply:
5-7kg/cm2
Design:
Sturdy design
Packing dimension (max):
Max:L240mm*W120mm*H90mm
Packing dimension (min):
Min:L110mm*W110mm*H30m
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
1,The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tighter, we will use film for packing or pack it according to customers special request
2,As your requirement
Port
shenzhen ,guangzhou

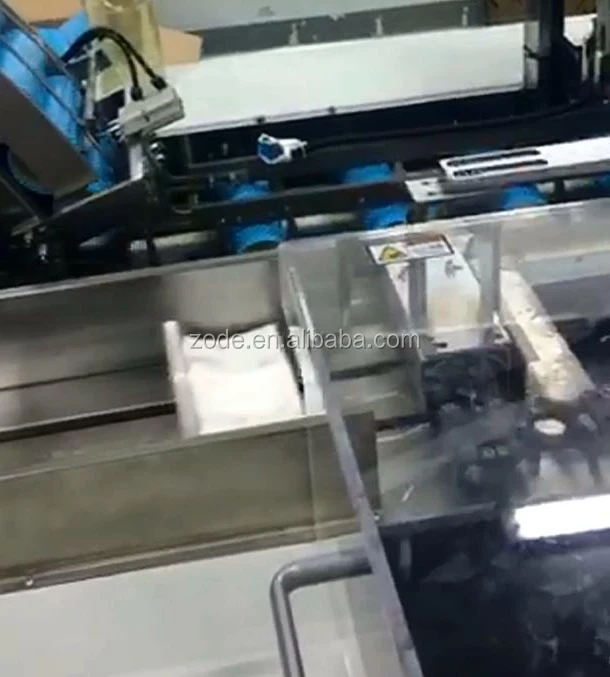

Video Description
Product Description

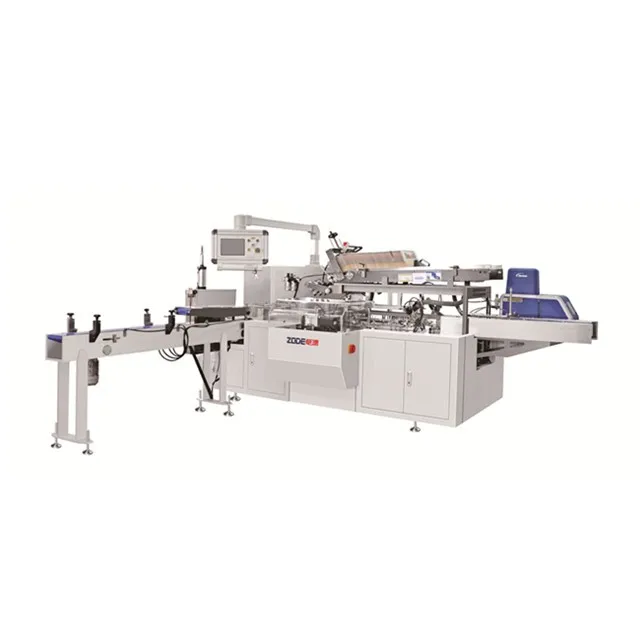

Box Packing Facial Paper Tissue Machine Product Line



Application range:
It is suitable for individual or collective thermal shrink packing of box facial tissue, box sanitary napkin, roll toilet paper, etc.

Main performances and features:
Welting fully-closed type packing is adopted and the finished products are featured by beautiful appearance and compact structure.

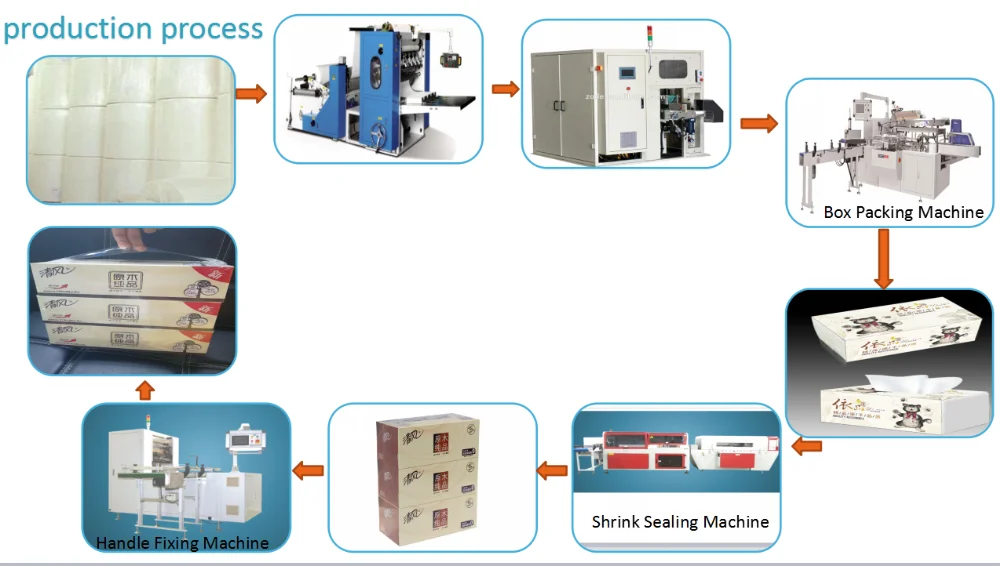

The production is completed through such procedures as automatic feeding, piling, bag making, sealing & cutting, flattening, shrinking, finished products output, etc., so that labor cost is greatly reduced.
The constant temperature type super alloy sealing cutter is used for sealing and cutting. It is featured by good sticking resistance, fine sealing thread, no coking, no smoke and zero pollution.
Special protection device is provided at the sealing to effectively prevent wrong cutting of packaging.

Products Show


  1. Packing forms such as automatic feeding, box opening, boxing, batch no. Printing, glue spreading, box sealing, etc. Are adopted. Featured by compact and reasonable structure, simple operation and adjustment.

  2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.

  3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line,which can greatly reduce labor cost.

  4. The photoelectric eye automatic detection tracking system is adopted. No boxing is made if the bag is empty, so as to save packing materials to the utmost extent.

  5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.

Item/model
OPH-100B-H
Paper quality of carton
350-400g/m3
Maximum packing specification
L115mm*W115mm*H130mm
Packing speed
30-80(boxes/minute)
Hot melt machine power
2.5KW
Motor power
3.74KW
Total power
6.25KW
Power supply type
(3phase 4wire) 380V 50Hz
Machine noise
≤80dB
Air supply
0.5-0.8 Mpa
Air consumption
120-160L/min
Our Service


Pre-Sales Service


* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*Solutions provide services
*special designed services



After-Sales Service


* One year warranty
* Training how to install and use the machine
* Engineers available to do machinery service overseas

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team



Liuzhou Zhuode Machinery Sci-Tech Co., Ltd, China.

Our products including toilet tissue production line machine,kitchen paper production line machine,napkins machines,Handkerchief tissue.diapers packaging machinery,jumbo roll (maxi roll)paper machinery.
we are able to supply our partners not only high quality product, but also special designed services.
Our machines have been exported to the USA,Malaysia,Australia,Korea,Bolivia,Chile,
Dubai,Saudi Arabia,Egypt,The united Arab emirates,South Africa,Indonesia,Canada and so on .

Packing & Delivery

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Our Certifications
Customer Photo





Professional attitude, professional explanation, with strong technical strength as backing.




Personally lead customers to factories, introduce factories and products, and repay our customers with excellent quality.





Committed to new product design, development, promotion, to show our customers the best products.
